914/1219/2438mm Ral color PPGI color coated steel coil for profiled tile roof structure rolling shutter door 0.45/0.5/0.6mm
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | LUBAO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | $636.12/tons 25-99 tons |
| Payment Terms: | T/T, LC at sight |
|
Detail Information |
|||
| Application: | Making Pipes, Cutting Sheets, Making Small Tools, Making Corrugated Sheets, Making Container, Making Fences | Type: | Steel Coil |
|---|---|---|---|
| Thickness: | 0.12-0.2, 0.12-3mm | Standard: | Bs/DN/GB/AISI/ASTM/DIN/JIS |
| Width: | 300-2000, 900-1500mm | Length: | 600m |
| Certificate: | ISO9001 | Grade: | ASTM/AISI/SGCC/CGCC/TDC51DZM/ |
| Coating: | Z81-Z120 | Tolerance: | ±1% |
| Processing Service: | Welding, Punching, Cutting, Bending, Decoiling | RAL Color: | RAL9001 RAL1002 RAL1001 According To Customer |
| Hardness: | Mid Hard, Normal Soft | Delivery Time: | Within 7 Days |
| Product Name: | Ppgi Galvanized Steel Coil | Surface: | Galvanized Coated |
| Keyword: | Color Zinc Coated Coil | Color: | Natural Color |
| Shape: | Coil Roll | Surface Treatment: | Oiled |
| Material: | ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345 | ||
Product Description

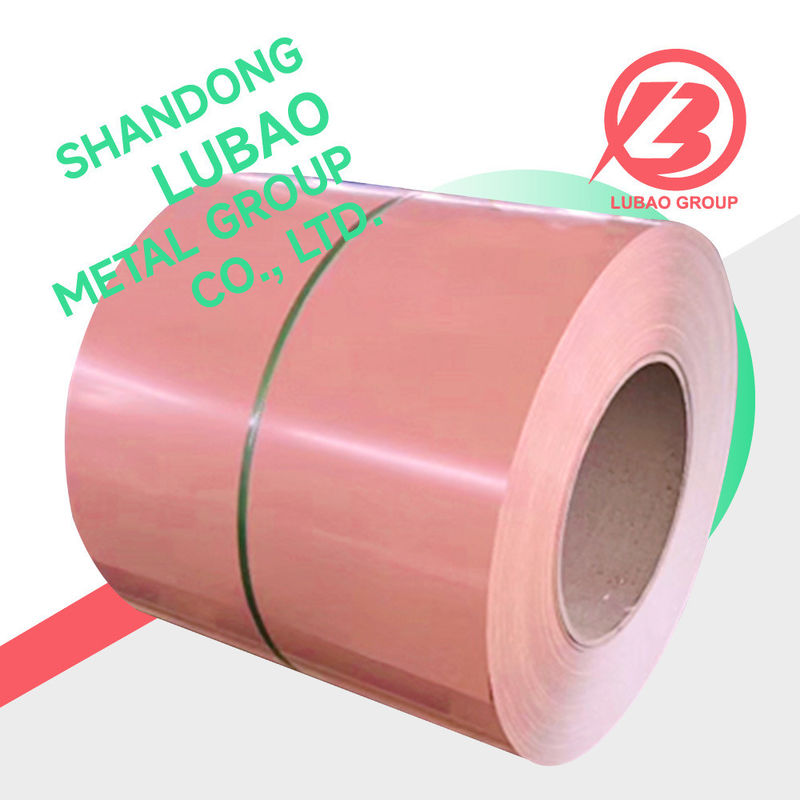

COLOR COATED COIL/PPGI/Prepainted galvanized steel coils
Color coated coil（PPGI） is a product of hot galvanized sheet, hot aluminized zinc sheet, electrogalvanized sheet, etc., after surface pretreatment (chemical degreasing and chemical conversion treatment), coated with a layer or several layers of organic coating on the surface, and then baked and cured. Because coated with a variety of different colors of organic paint color steel coil board named, short for color coated coil.
Product Process
Specification
Product name | Prepainted galvanized steel coils Color coated coil（PPGI） | ||||||
Standard: | AiSi, ASTM, bs, DIN, GB, JIS | Price term: | EXW/FOB/CIF/CFR | ||||
Coil Weight: | 3-8 Tons | Place of Origin: | SHANDONG CHINA | ||||
Zinc coating: | 40-275g/㎡ | Alloy Or Not: | Non-Alloy | ||||
Color: | RAL color | Grade: | SGCC, SPCC, DC51D, SGHC,A653 | ||||
Thickness: | 0.12-0.3mm, 0.12-2.5mm | Delivery Time: | 7days | ||||
Width: | 600 - 1250MM | Surface: | PE/SMP/PVDF/HDP | ||||
Certificate: | ISO9001 | Sample: | Avaliable | ||||
Application: | struction, construction | ||||||
Paint Coating | Top 8-35um,Back 3-25um | ||||||
ID of Coil | 508/610MM | Length | As customer require | ||||
HRB | Soft Hard (<60),Medium Hard (60-85), Full Hard (85-95) | Type: | steel coil | ||||
Surface description
Folded polyester (PE)
Good adhesion, rich color, wide range of formability and outdoor durability, moderate chemical resistance, low cost.
Folding silicon modified polyester
Namely (SMP), the coating has good hardness, wear resistance and heat resistance, as well as good external durability and powder resistance, gloss retention, flexibility, medium cost.
Folding high durability polyester
Namely (HDP), excellent color retention and UV resistance, excellent outdoor durability and powder resistance, good film adhesion, rich color, excellent cost performance.
Folded polyvinylidene fluoride
Namely (PVDF), excellent color retention and UV resistance, excellent outdoor durability and powder resistance, excellent solvent resistance, good formability, dirt resistance, limited color, high cost.
Good adhesion, rich color, wide range of formability and outdoor durability, moderate chemical resistance, low cost.
Folding silicon modified polyester
Namely (SMP), the coating has good hardness, wear resistance and heat resistance, as well as good external durability and powder resistance, gloss retention, flexibility, medium cost.
Folding high durability polyester
Namely (HDP), excellent color retention and UV resistance, excellent outdoor durability and powder resistance, good film adhesion, rich color, excellent cost performance.
Folded polyvinylidene fluoride
Namely (PVDF), excellent color retention and UV resistance, excellent outdoor durability and powder resistance, excellent solvent resistance, good formability, dirt resistance, limited color, high cost.

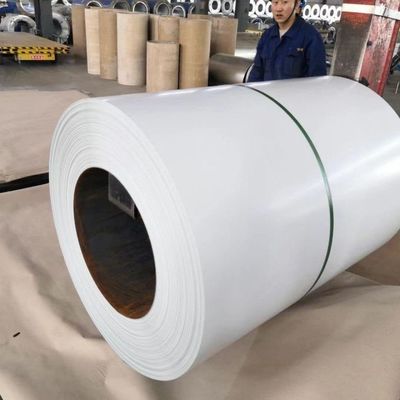

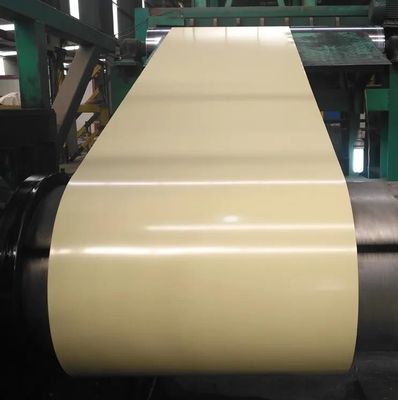

Product Disply
RAL color：1001/1002/1003/1004/1026/1023/3001/3003/5015/5017/6012/6011/6021/6024/6029/9001/9016/9017 All kinds of Ral color.
Slitting coil / cutting coil size : According to the width required by the customer, we make the second processing, and produce the size that meets the requirements of the customer.
(300mm/324mm/400mm/600mm416mm/625mm/725mm /900mm/1000mm/1219mm/1250mm.)

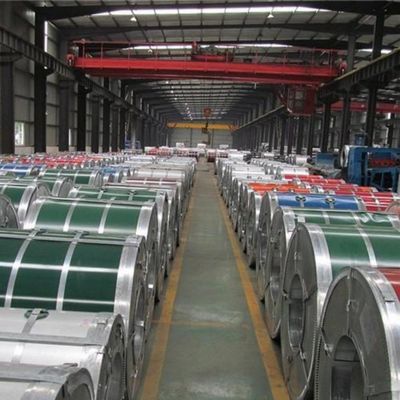

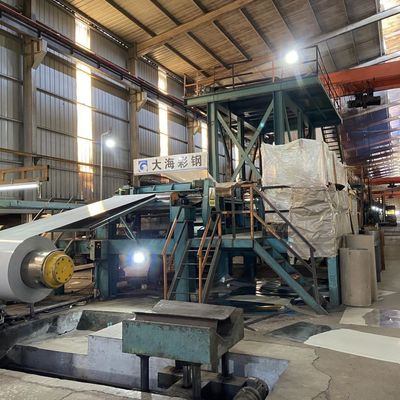

Fatory Display
Mainly product：carbon steel, stainless steel, galvanized series, PPGI/PPGL series, aluminum series, steel pipe, section steel, etc. are widely used in chemical, construction, engineering, kitchen construction and other important fields.
It has established long-term and stable cooperative relations with domestic steel mills such as Shandong Iron and Steel, Rizhao Iron and Steel, Shanxi Taiyuan Iron and Steel, Shanghai Baosteel, and Xiwang Special Steel. The monthly export volume has reached 8000-12000 tons.

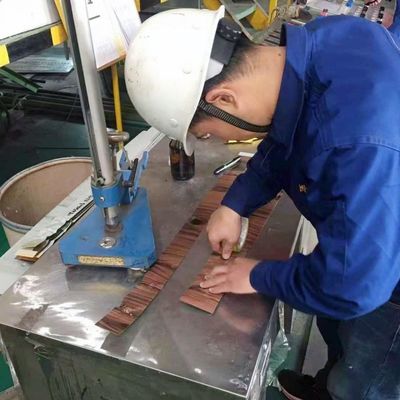

Product Inspection
Product Application
PPGI/Color coated roll has light weight, beautiful appearance and good corrosion resistance, but also can be directly processed, the color is generally divided into white and white, blue, brick red, mainly used in advertising, construction, home appliances, electrical appliances, furniture and transportation industry. The paint used in the color coating volume is selected according to the different use environment, such as polyester silicon modified polyester, polyvinyl chloride plastic sol, polyvinylidene chloride. Users can choose according to the purpose.
Packing and shipping
We have our own professional packing team, which is fully in line with the standard after port inspection. We have our own
professional packing and reinforcement team, which has more requirements from customers when shipping containers, such as LCL and FCL.
professional packing and reinforcement team, which has more requirements from customers when shipping containers, such as LCL and FCL.
PPGI /Prepainted galvanized steel coil packing ：The inside is packed with professional oil paper, and the outside is reinforced with iron sheet to prevent scratches and wear. Finally, it is reinforced with steel tape.
Company Profile
SHANDONG LUBAO METAL GROUP CO., LTD. is an export company integrating steel production, processing and sales. Close to the northern coastal cities, convenient transportation, close to Qingdao Port, Tianjin Port and Shanghai Port, we have long-term and reliable cooperative relations with many shipping companies, and have great EXW, FOB, CIF price advantages.
Our goal is to develop long-term and reliable cooperative relations, and now we have long-term cooperative partners in Pakistan, Bangladesh, Israel, Ethiopia, Vietnam, Singapore, Brazil and other countries and have been widely recognized by customers. The company has a strong financial backing, can accept a large amount of sight irrevocable LC, and, guarantee the delivery time! Do our best to meet all customer needs. Looking forward to doing business and making friends with customers all over the world!
FQA
Q: Why should I choose you?
A: good quality + good price + good service = Customer's trustQ: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: We accept LC and TT both DP .
