ASTM Standard Wide Flange H-Beams Hot Rolled Beam Structural Steel Section Properties for H Beam
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | lubao |
| Model Number: | GB/T11263-2005 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | $633.00/tons 1-49 tons |
| Payment Terms: | T/T, LC at sight |
|
Detail Information |
|||
| Grade: | Q235/Q235B/Q345/Q345B/SS400 | Technique: | Hot Rolled |
|---|---|---|---|
| Thickness: | 5-34mm, 5-34mm | Application: | Structural Beam |
| Length: | 6-12m, 6-12m | Standard: | ASTM |
| Flange Width: | 100-408mm | Flange Thickness: | 8mm - 64mm, 8mm - 64mm |
| Web Width: | 96mm - 1056mm, 96mm - 1056mm | Web Thickness: | 6mm-16mm, 6mm-16mm |
| Tolerance: | ±1% | Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
| Alloy Or Not: | Non-Alloy | Invoicing: | By Theoretical Weight |
| Delivery Time: | 31-45 Days | Product Name: | H-Beam |
| Shape: | H-channel | Technical: | Hot Rolled Beam |
| MOQ: | 1 Ton | Type: | GB Standard(10#-40# 100*68mm--400*144mm) European Standard(IPE |
Product Description

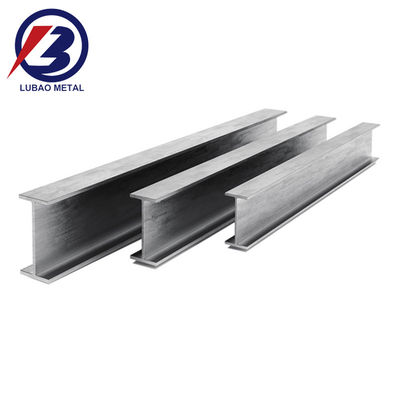

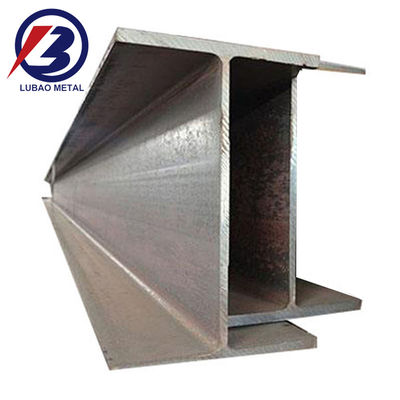

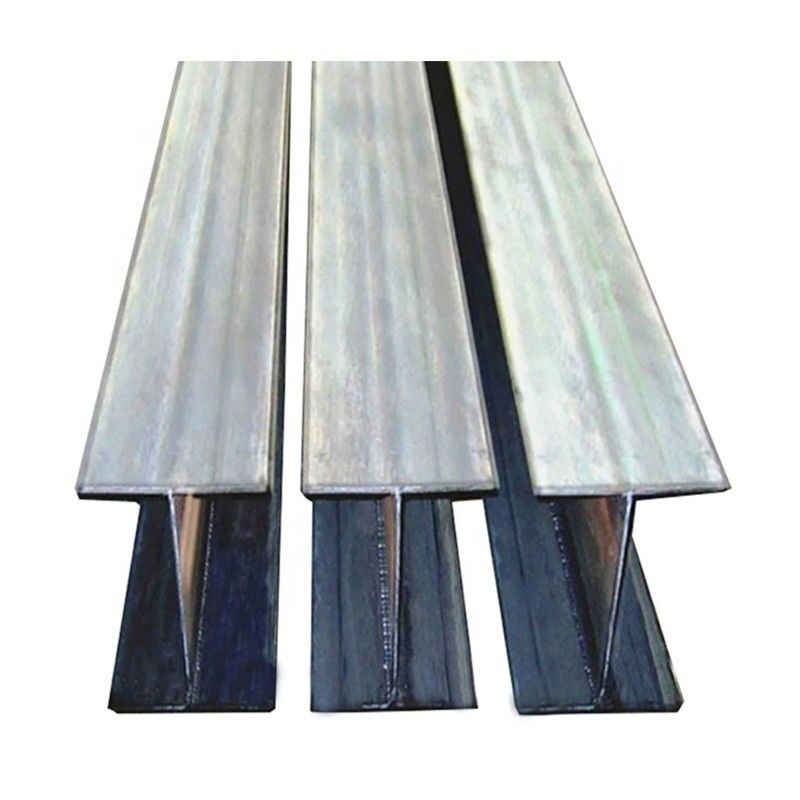

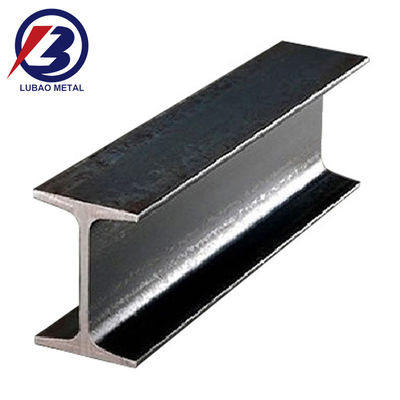

H-beam steel is an economical cross-section high-efficiency profile with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter "H". Since all parts of the H-shaped steel are arranged at right angles, the H-shaped steel has the advantages of strong bending resistance in all directions, simple construction, cost saving and light structural weight, and has been widely used.
Product Name | H Beam & I BEAM | ||||||
Material | GB: Q195.Q215.Q235. Q345. L175.L210. L245. L320. L360- L555 ASTM A53: GR A. GR B. GR C EN: S275, S275JR, S355JRH, S355J2H | ||||||
Flange Thickness | 4.5-35mm | ||||||
Flange Width | 100-1000mm | ||||||
Web Thickness | 4.5-70mm | ||||||
Web Width | 100-450mm | ||||||
Length | 5.8m,6m,9m,11.8m,12m or as your requirement | ||||||
Payment term | T/T, LC, Kun Lun Bank, Western Union, Paypal, DP | ||||||
MOQ | 1TON | ||||||
Application | 1.Industrial structure of the steel structure bearing bracket 2.Underground engineering steel pile and retaining structure 3.Petrochemical and electric power and other industrial equipment structure 4.Large span steel bridge components 5.Ships,machinery manufacturing frame structure | ||||||
Certificate | API 5L PSL1 / PSL2. API 5CT.ISO 9001-2008 | ||||||
Surface | Fusion bond Epoxy coating. Coal Tar Epoxy.Polyamide Epoxy.3PE.3PP | ||||||
Delivery Time | 5-20 working days | ||||||

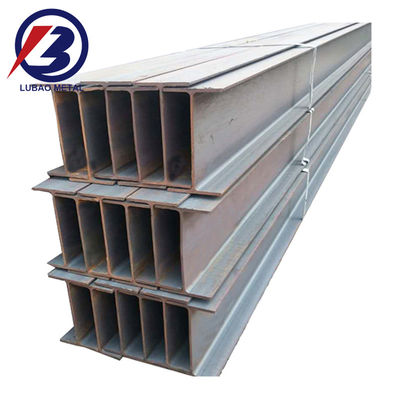

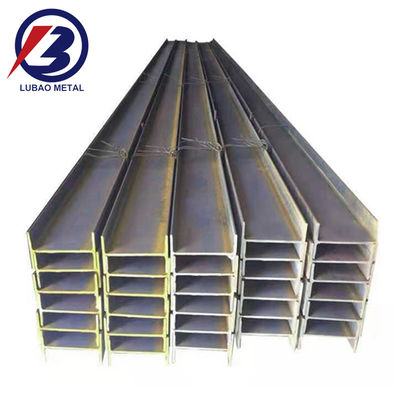

Package | In bulk or container,Standard seaworthy packing or as your required | ||||||
Close to the northern coastal cities, convenient transportation, close to Qingdao Port, Tianjin Port and Shanghai Port, we have long-term and reliable cooperative relations with many shipping companies, and have great EXW, FOB, CIF price advantages.
H-beam steel is widely used, mainly used in various civil and industrial building structures, various long-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions. In addition, it is also suitable for large bridges, heavy equipment, highways, ship skeletons, mine support, foundation treatment and dam engineering, etc.
SHANDONG LUBAO METAL GROUP CO., LTD. is an export company integrating steel production, processing and sales.Main products: carbon steel, stainless steel, galvanized series, PPGI/PPGL series, aluminum series, steel pipe, section steel,etc. are widely used in chemical, construction, engineering, kitchen construction and other important fields. The company has a strong financial backing, can accept a large amount of sight irrevocable LC, and, guarantee the delivery time!
Our products meet a number of certifications.
All the customers who have worked together have given high praise.
If you are interested in our products, please feel free to contact me—Jane zhou
I will provide you with the best price and service~
Our goal is to develop long-term and reliable cooperative relations, and now we have long-term cooperative partners in Pakistan,Bangladesh, Israel, Ethiopia, Vietnam, Singapore, Brazil and other countries and have been widely recognized by customers. Do our best to meet all customer needs. Looking forward to doing business and making friends with customers all over the world!
FAQ
Q:Are you a manufacture or a trader?A:We have a quality inspecting team, we also accept third party's inspection,SGS,BV,CICC,ITS,CTI.
Q:Can you provide a sample?
A:Yes, we can provide free sample.
Q: production circle and deliver time.
A: Production will last for twenty to forty days after we received your deposit.
Q:Shipping port？
A:Tianjin Port and Qingdao Port.
Q: payment term？
A:T/T, LC at sight.
A:Yes, we can provide free sample.
Q: production circle and deliver time.
A: Production will last for twenty to forty days after we received your deposit.
Q:Shipping port？
A:Tianjin Port and Qingdao Port.
Q: payment term？
A:T/T, LC at sight.
