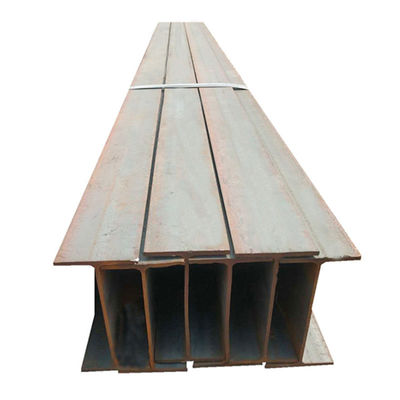

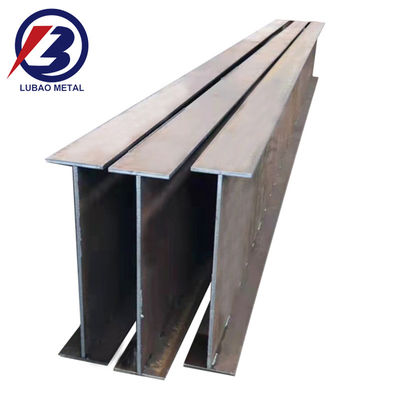

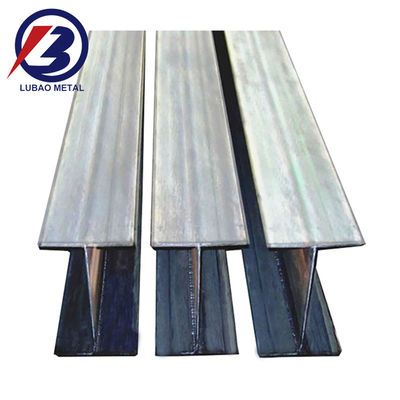

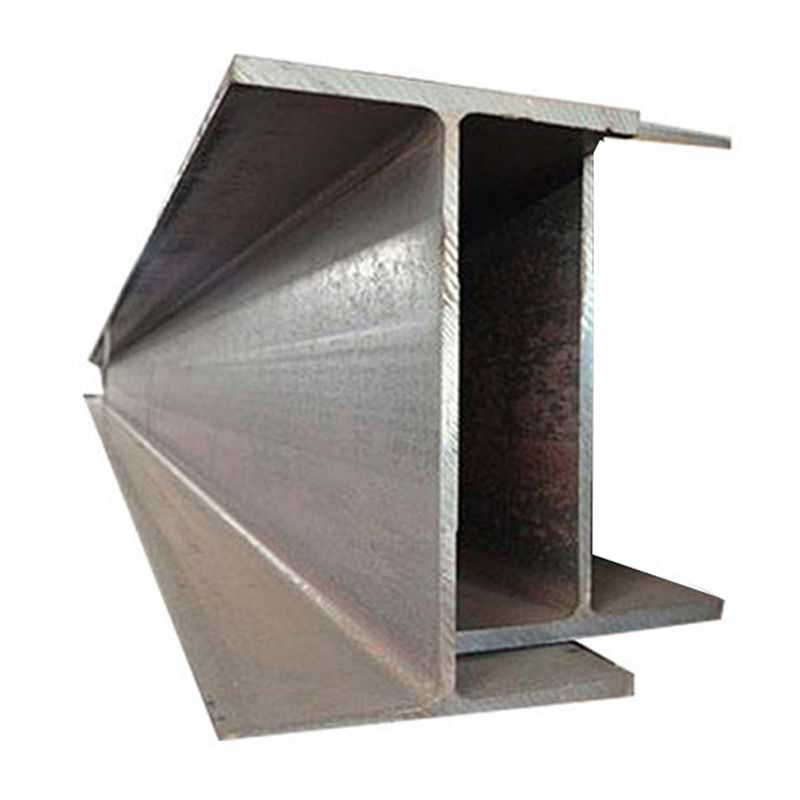

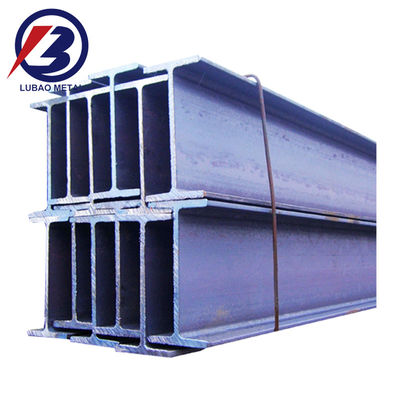

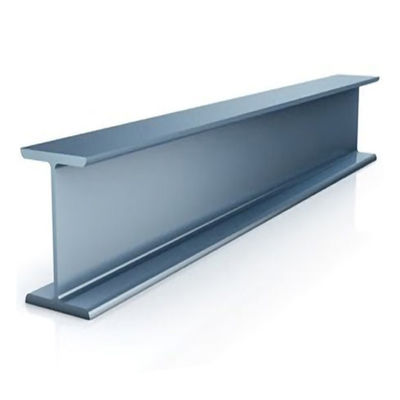

Structural Carbon Profile H Iron Beam Steel for Construction Web Thickness 5mm-16mm Tolerance ±1% A36 Q235 ASTM Standard
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | LUBAO |
| Model Number: | H beam, I beam |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Ton |
|---|---|
| Price: | $600.00/tons 1-24 tons |
| Packaging Details: | Standard Seaworthy packaging<br>A36 Q235 ASTM standard Hot Rolled Steel H Beam/I Beam Structural Carbon Profile H Iron Beam Steel for Construction |
| Payment Terms: | T/T, LC at sight |
| Supply Ability: | 20000 Ton/Tons per Month |
|
Detail Information |
|||
| Grade: | Q235 | Technique: | Hot Rolled |
|---|---|---|---|
| Thickness: | 5-45mm | Application: | Structural Beam,Construction |
| Length: | 6-12m | Standard: | ASTM |
| Flange Width: | 50-400mm | Flange Thickness: | 8mm - 64mm |
| Web Width: | 100mm-900mm | Web Thickness: | 5mm-16mm |
| Tolerance: | ±1% | Processing Service: | Bending, Welding, Decoiling, Punching, Cutting |
| Alloy Or Not: | Non-Alloy | Invoicing: | By Theoretical Weight |
| Delivery Time: | Within 7 Days | Product Name: | H-Beam I-Beam |
| Shape: | H-shape I-shape | Material: | Q235/Q235B/Q345/Q345B |
| Surface: | Hot Diped Galvanized/Black | Technical: | Hot Rolled Molding |
| Steel Grade: | S235 S355 ST52 ST37-2 | Package: | Standard Sea-worthy Packing |
| Payment: | 30% T/T Deposit | Size: | 100*100*6*8mm~900*300*18*34mm |
| Usage: | Commercial Buildings | Port: | Qingdao/Tianjin Port |
Product Description
H-shaped steel is an economical and efficient section with more optimized section area distribution and more reasonable strength-weight ratio. It is named because its section is the same as the English letter "H". Since all parts of H-beam are arranged at right angles, H-beam has been widely used for its advantages of strong bending resistance, simple construction, cost saving and light structural weight in all directions.
Its characteristics are as follows: 1. Wide flange and large lateral stiffness. 2. Strong bending resistance, about 5% - 10% higher than I-beam. 3. The two surfaces of the flange are parallel to each other, making the connection, processing and installation simple. 4. Compared with welded I-beam, it has the advantages of low cost, high accuracy, low residual stress, no need for expensive welding materials and weld detection, and can save about 30% of steel structure manufacturing cost. 5. Under the same section load, the weight of hot-rolled H steel structure is 15% - 20% less than that of traditional steel structure. 6. Compared with the concrete structure, the hot-rolled H steel structure can increase the service area by 6%, while the dead weight of the structure can be reduced by 20% - 30%, reducing the design internal force of the structure. 7. H-shaped steel can be processed into T-shaped steel, and honeycomb beam can be combined to form various cross sections, which greatly meets the requirements of engineering design and production.
Thickness | 5-45mm |
Application | Structural Beam,Construction |
Length | 6-12m |
Web Width | 100mm-900mm |
Model Number | H beam, I beam |
Tolerance | ±1% |
Material | Q235/Q235B/Q345/Q345B |
Surface | Hot Diped Galvanized/Black |
Technical | Hot Rolled Molding |
Steel Grade | S235 S355 ST52 ST37-2 |
Package | Standard Seaworthy Packing |
Payment | 30% T/T Deposit |
Size | 100*100*6*8mm~900*300*18*34mm |
Usage | Commercial Buildings |
PACKAGING:
Anti-water paper and plastic film+covered by iron sheet+ strapped with min three strapping strips+fixed on the iron or wooden pallets by strapping strips.
SHIPPING:
We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
Anti-water paper and plastic film+covered by iron sheet+ strapped with min three strapping strips+fixed on the iron or wooden pallets by strapping strips.
SHIPPING:
We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
H-shaped steel is mainly used for beam and column components in industrial and civil structures. 1. Steel structure bearing bracket of industrial structures 2. Steel piles and supporting structures of underground works 3. Structure of industrial equipment such as petrochemical and electric power 4. Long-span steel bridge components 5. Ship and machinery manufacturing frame structure 6. Girder support of train, car and tractor 7.Port conveyor belt and high-speed baffle bracket
SHANDONG LUBAO METAL GROUP CO., LTD. is an export company integrating steel production, processing and sales. Close to the northern coastal cities, convenient transportation, close to Qingdao Port, Tianjin Port and Shanghai Port, we have long-term and reliable cooperative relations with many shipping companies, and have great EXW, FOB, CIF price advantages. Main products: carbon steel, stainless steel, galvanized series, PPGI/PPGL series, aluminum series, steel pipe, section steel, etc. are widely used in chemical, construction, engineering, kitchen construction and other important fields. It has established long-term and stable cooperative relations with domestic steel mills such as Shandong Iron and Steel, Rizhao Iron and Steel, Shanxi Taiyuan Iron and Steel, Shanghai Baosteel, and Xiwang Special Steel. The monthly export volume has reached 8000-12000 tons. Our goal is to develop long-term and reliable cooperative relations, and now we have long-term cooperative partners in Pakistan, Bangladesh, Israel, Ethiopia, Vietnam, Singapore, Brazil and other countries and have been widely recognized by customers. The company has a strong financial backing, can accept a large amount of sight irrevocable LC, and, guarantee the delivery time! Do our best to meet all customer needs. Looking forward to doing business and making friends with customers all over the world!
From the establishment of the company to the present, our network export Station has exported more than 50 countries and regions with customers on five continents.
FAQ
1. who are we?
We are based in Shandong, China, start from 2016,sell to Africa(20.00%),South America(15.00%),Mid East(12.00%),Southeast Asia(10.00%),Domestic Market(10.00%),North America(8.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Carbon Steel Coil,Galvanized Steel Coil,PPGI Steel Coil,Corrugated Roofing Sheet,Stainless Steel Product
4. why should you buy from us not from other suppliers?
Lubao Metal is an export company integrating steel production, processing and sales. We have more than ten years of experience in steel export, Fast delivery, near the port city and low transportation cost. The monthly export volume has reached 8000 tons.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal,Western Union,Cash,Escrow;
We are based in Shandong, China, start from 2016,sell to Africa(20.00%),South America(15.00%),Mid East(12.00%),Southeast Asia(10.00%),Domestic Market(10.00%),North America(8.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Southern Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Carbon Steel Coil,Galvanized Steel Coil,PPGI Steel Coil,Corrugated Roofing Sheet,Stainless Steel Product
4. why should you buy from us not from other suppliers?
Lubao Metal is an export company integrating steel production, processing and sales. We have more than ten years of experience in steel export, Fast delivery, near the port city and low transportation cost. The monthly export volume has reached 8000 tons.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal,Western Union,Cash,Escrow;
Want to Know more details about this product
